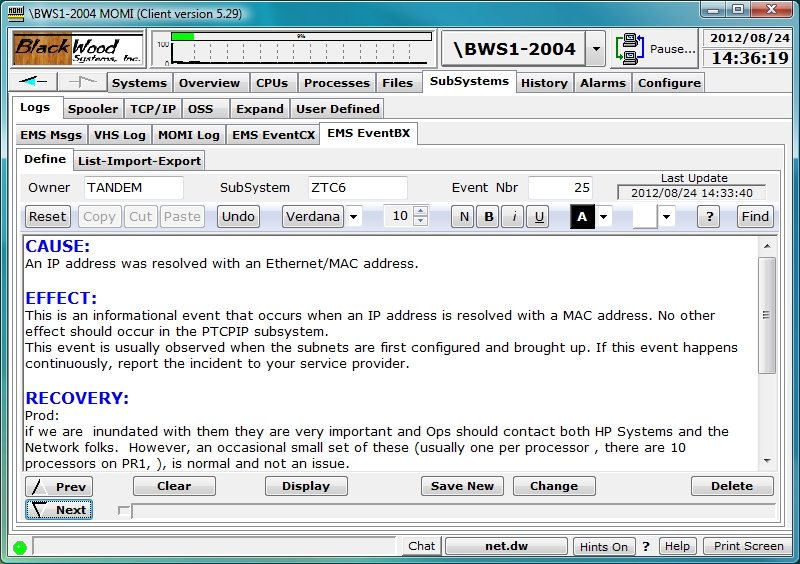

The EMS EventBX / Define screen provides for the definition and maintenance of user supplied information associated with an EMS message. The information is keyed by an EMS SSID (also known as the Owner.Subsystem & event number).
Information entered here is available on the EMS Msgs detail screen and could be considered a super-set of the EventCX file functionality.
EMS records by themselves may not contain enough information for an operator or system administrator to determine an action. This screen provides a method for storing additional details and/or actions associated with an EMS message. The information entered here is free form and virtually unlimited in size.
To use the feature, enter the EMS Owner, SubSystem and Event Nbr. Enter the desired text and press Save New. Existing entries may be alter or deleted.
The tool bar across of the text entry area is used to format text such as selecting different fonts or choosing bold, underline and italic to selected text. Information may also be copied and pasted from external sources.
